Drives & Automation

General Purpose VFD

FVR Micro - New Simple Inverter

- 0.4 to 2.2kW
- 1-Ph 200V & 3-Ph 400V
- 5 Digital I/p , 1 Transistor O/p, 1 Relay O/p, 2 Analog I/p, 1 Analog O/p
- Communication: Modbus RS-485
- Overload 150% 1 min, 200% 0.5 s
- With Traverse Function
- Auto Energy Saving Function
- Records 4 Alarms
- Alarm Auto Reset Function

FVR Mini - Compact Inverter

- 0.4 to 15kW
- 1-Ph 200V & 3-Ph 400V
- 5 Digital I/p , 1 Transistor O/p, 1 Relay O/p, 2 Analog I/p, 1 Analog O/p
- Communication: Modbus RS-485
- Overload 150% 1 min, 200% 0.5 s
- V/F & Dynamic Torque Vector Control
- PID Control Function
- PM Motor Control

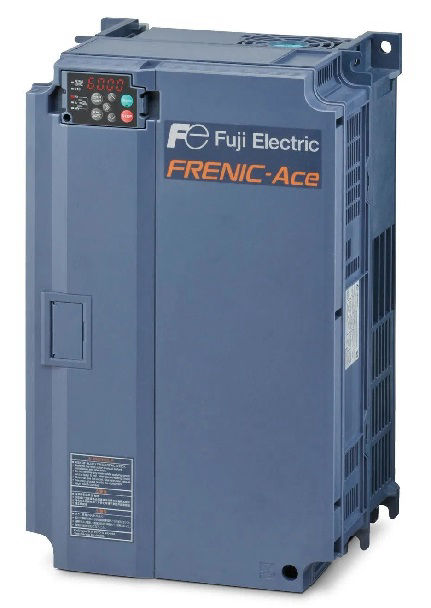

FVR Ace - High Performance Inverter

- 0.4 to 250kW
- 1-Ph 200V, 3-Ph 400V & 3-Ph 230VAC
- 7 Digital I/p , 2 Transistor O/p, 1 Relay O/p, 2 Analog I/p, 1 Analog O/p
- Communication: Modbus RS-485 (Dual Channel)
- Overload Heavy Duty: 150% 1 min, Normal Duty: 200% 0.5 s
- Variety of Vector Control Modes
- Built-In Safe Torque Off Input
- PM Motor Control
- Customisable Logic of 200 Steps
- Password Protection

FVR Mega - High Performance Multi Function Inverter

- 0.4 to 710kW
- 3-Ph 400V & 3-Ph 230VAC
- 9 Digital I/p , 4 Transistor O/p, 2 Relay O/p, 2 Analog I/p, 2 Analog O/p
- Communication: Modbus RS-485
- Overload Heavy Duty: 200% for 3 sec 150% 1 min , Normal Duty: 120% for 1 min
- Sensorless Vector Control Mode
- Advanced PID Functions
- Built-In Safe Torque Off Input
- Removable Control Terminals
- 3 Available Option Ports
- Multifunction Keypad as Standard
- Operating Panel cab be detached and mount on Panel Door

Mobirise themes are based on Bootstrap 3 and Bootstrap 4 - most powerful mobile first framework. Now, even if you're not code-savvy, you can be a part of an exciting growing bootstrap community.

Choose from the large selection of latest pre-made blocks - full-screen intro, bootstrap carousel, content slider, responsive image gallery with lightbox, parallax scrolling, video backgrounds, hamburger menu, sticky header and more.

Industry Specific VFD

- Wide capacity range from 0.75 kW to 710 kW
- DCR and EMC filter built-in up to 90 kW. Built-in EMC filter for all capacities
- Overload capability 110% - 60sec Torque
- Vector Control
- Modbus RTU, BACnet MS/TP, Metasys N2; integrated as standard
- Large LCD display, 19 languages
- Specific macros for common fan and Applications
- Customizable Logic (mini PLC), 14 steps,
- Possibility to manage digital and analog signals
- Real Time Clock (RTC)
- 4 PID sets
- Alpha Numeric, Multi-Purpose Detachable Key Pad
- Battery (OPK-BP)
- Password function
- IP55 option also available in HVAC drive

- Wide capacity range from 0.75 kW to 710 kW
- DCR and EMC filter built-in up to 90 kW.
- Built-in EMC filter for all capacities
- Overload capability 110% Torque Vector Control
- Modbus RTU, BACnet MS/TP, Metasys N2; integrated as standard
- Alpha Numeric, Multi-Purpose Detachable Key Pad
- Multi Pump control (up to 9 pumps with one inverter)
- Anti jam function
- Pipe fill mode
- Extension cable for remote operation (CB-…S)
- Battery (OPK-BP)
- Fire mode (forced operation)

- 200 % OL for 0.5 sec, 150 % OL for 60 sec
- Open loop & close loop application with use of optional PG interface card.
- 6 ‘s-curves’ for smooth operation of elevator
- Supports 240 V single phase ARD operation as standard feature
- Drive operation in the direction of less power consumption during ARD mode.
- External brake logic control by drive.
- Output contactor control by digital output and built in timer function
- Standard CANopen compatibility.
- Soft Start operation with zero speed DC braking at start up.
- FWD/REV command check Function
- PTC input with threshold settable
- SIL 3 compliance with STO safety functionality, eliminating need of output contactor.

- True Maximum Power Point Tracking (MPPT) function.
- Modbus RS 485 in- built to communicate with Remote Monitoring Systems
- Motor Protection features to select water level detection and control circuit to
prevent overflow.
- Low Out power signal function.
- Dry Pump Detection.
- Tank Level Detection .
- Sleep function to safeguard the motor.
- Big step Detection in climate is possible for smooth operation.
- Easy to operate, Programmed through Factory.
